Nebula Siwi,基于图数据库的智能问答助手

从 0 到 1 打造一个基于图数据库的智能问答助手。

a PoC of Dialog System With Graph Database Backed Knowledge Graph.

Related GitHub Repo: https://github.com/wey-gu/nebula-siwi/

这个项目我也做成了互动教程,可以按照这里的步骤搭建起来 👉🏻 https://siwei.io/cources/

I created the Katacoda Interactive Env for this project 👉🏻 https://siwei.io/cources/

您也可以在 Nebula Playground 上直接玩这个数据集啦:https://nebula-graph.com.cn/demo/

Now you can play with the data on Nebula Playground: https://nebula-graph.io/demo/

Siwi the voice assistant

Siwi (/ˈsɪwi/) is a PoC of Dialog System With Graph Database Backed Knowledge Graph.

For now, it’s a demo for task-driven(not general purpose) dialog bots with KG(Knowledge Graph) leveraging Nebula Graph with the minimal/sample dataset from Nebula Graph Manual/ NG中文手册.

Tips: Now you can play with the graph online without installing yourself!

Nebula Playground | Nebula Playground - China Mainland

Supported queries:

relation:

  • What is the relationship between Yao Ming and Lakers?
  • How does Yao Ming and Lakers connected?

serving:

  • Which team had Yao Ming served?

friendship:

  • Whom does Tim Duncan follow?
  • Who are Yao Ming’s friends?

Deploy and Try

TBD (leveraging docker and nebula-up)

How does it work?

This is one of the most naive pipeline for a specific domain/ single purpose chat bot built on a Knowledge Graph.

Backend

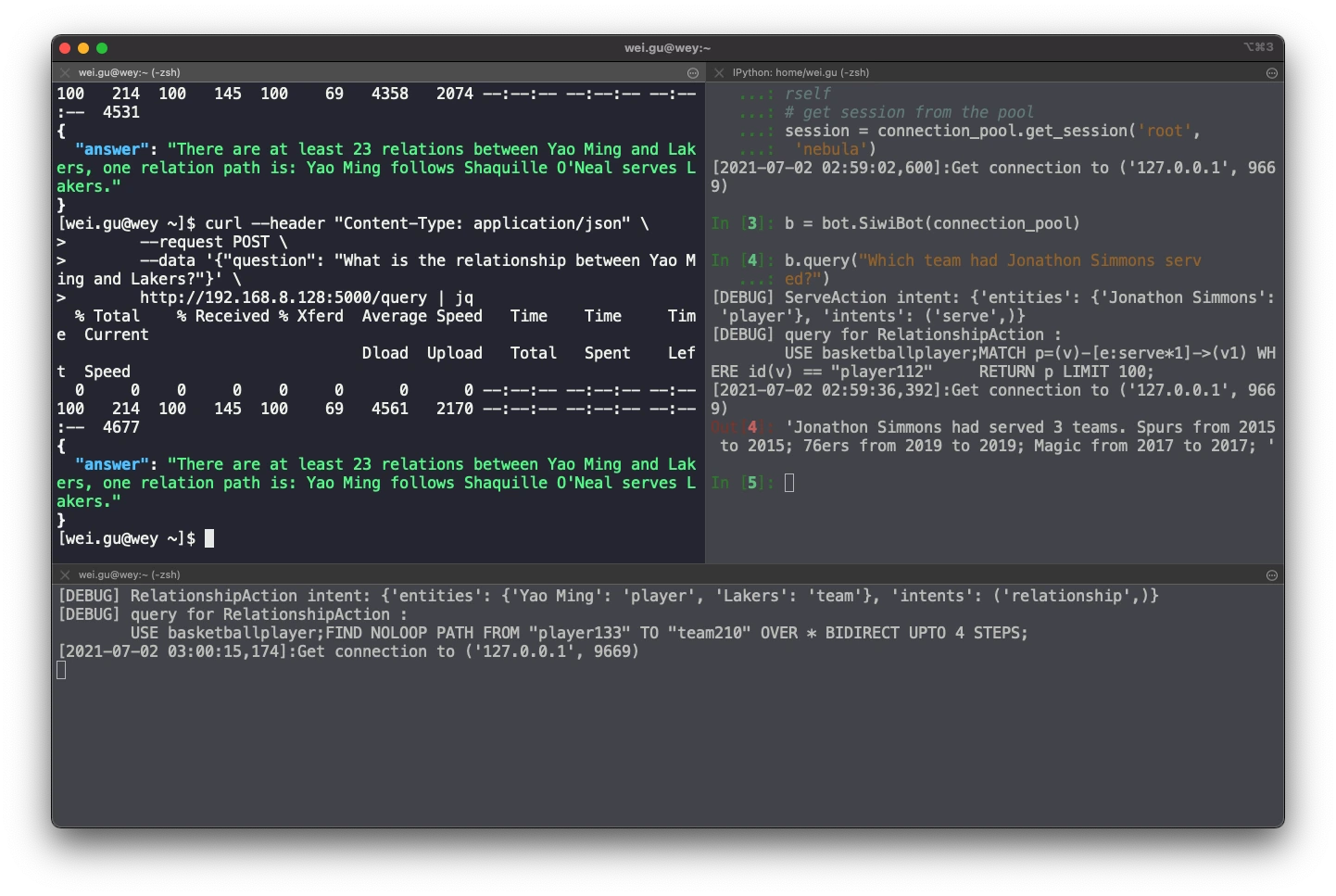

./backend-demo.webp

The Backend(Siwi API) is a Flask based API server:

  • Flask API server takes questions in HTTP POST, and calls the bot API.

  • In bot API part there are classfier(Symentic Parsing, Intent Matching, Slot Filling), and question actors(Call corresponding actions to query Knowledge Graph with intents and slots).

  • Knowledge Graph is built on an Open-Source Graph Database: Nebula Graph

Frontend

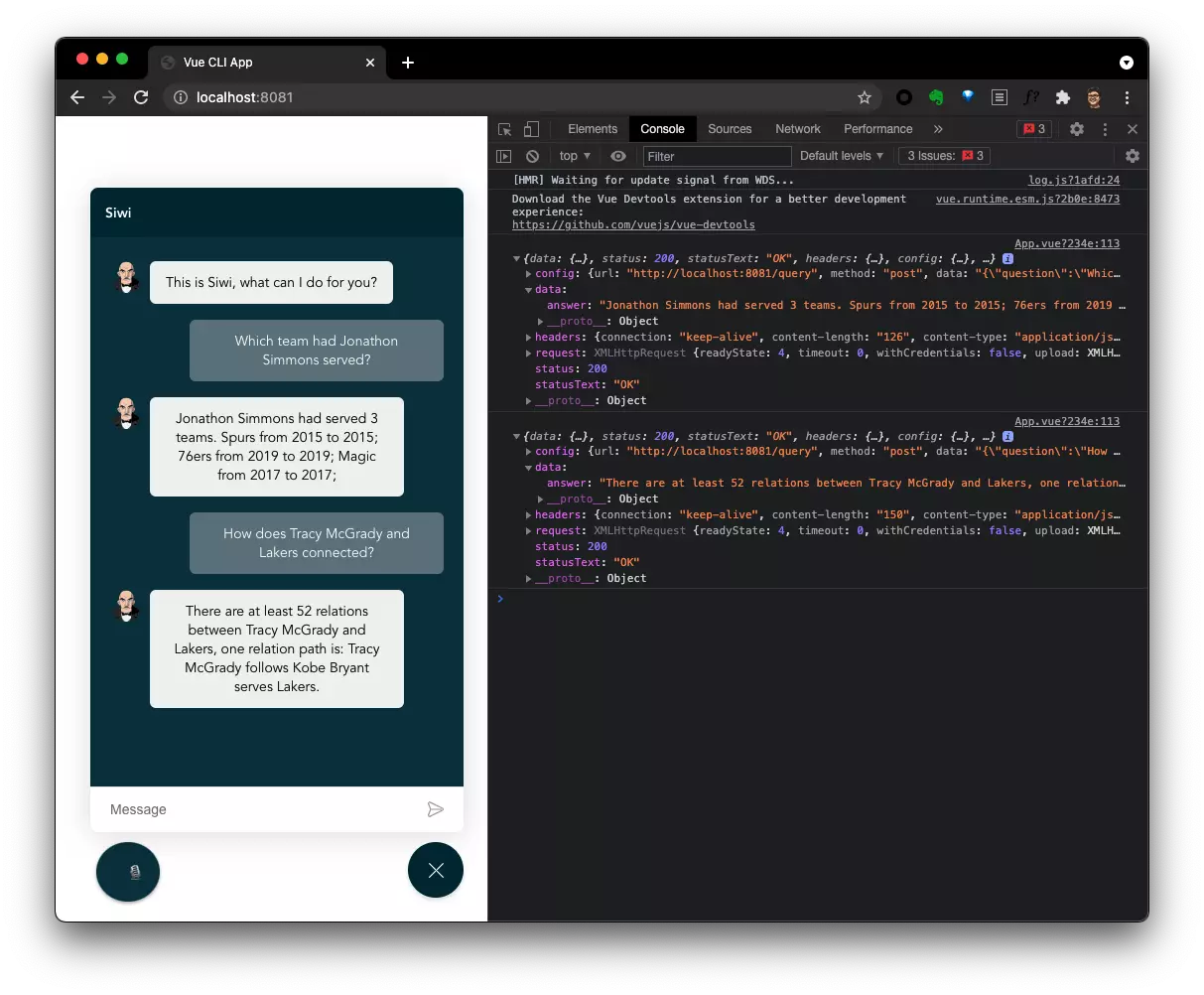

./demo.webp

The Frontend is a VueJS Single Page Applicaiton(SPA):

  • I reused a Vue Bot UI to showcase a chat window in this human-agent interaction, typing is supported.
  • In addtion, leverating Chrome’s Web Speech API, a button to listen to human voice is introduced

A Query Flow

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
┌────────────────┬──────────────────────────────────────┐
│                │                                      │
│                │  Speech                              │
│     ┌──────────▼──────────┐                           │
│     │            Frontend │   Siwi, /ˈsɪwi/           │
│     │ Web_Speech_API      │   A PoC of                │
│     │                     │   Dialog System           │
│     │ Vue.JS              │   With Graph Database     │
│     │                     │   Backed Knowledge Graph  │
│     └──────────┬──────────┘                           │
│                │  Sentence                            │
│                │                                      │
│   ┌────────────┼──────────────────────────────┐       │
│   │            │                              │       │
│   │            │              Backend         │       │
│   │ ┌──────────▼──────────┐                   │       │
│   │ │ Web API, Flask      │   ./app/          │       │
│   │ └──────────┬──────────┘                   │       │
│   │            │  Sentence    ./bot/          │       │
│   │ ┌──────────▼──────────┐                   │       │
│   │ │                     │                   │       │
│   │ │ Intent matching,    │   ./bot/classifier│       │
│   │ │ Symentic Processing │                   │       │
│   │ │                     │                   │       │
│   │ └──────────┬──────────┘                   │       │
│   │            │  Intent, Entities            │       │
│   │ ┌──────────▼──────────┐                   │       │
│   │ │                     │                   │       │
│   │ │ Intent Actor        │   ./bot/actions   │       │
│   │ │                     │                   │       │
│   └─┴──────────┬──────────┴───────────────────┘       │
│                │  Graph Query                         │
│     ┌──────────▼──────────┐                           │
│     │                     │                           │
│     │ Graph Database      │    Nebula Graph           │
│     │                     │                           │
│     └─────────────────────┘                           │
│                                                       │
│                                                       │
│                                                       │
└───────────────────────────────────────────────────────┘

Source Code Tree

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
.
├── README.md
├── src
│   ├── siwi                        # Siwi-API Backend
│   │   ├── app                     # Web Server, take HTTP requests and calls Bot API
│   │   └── bot                     # Bot API
│   │       ├── actions             # Take Intent, Slots, Query Knowledge Graph here
│   │       ├── bot                 # Entrypoint of the Bot API
│   │       ├── classifier          # Symentic Parsing, Intent Matching, Slot Filling
│   │       └── test                # Example Data Source as equivalent/mocked module
│   └── siwi_frontend               # Browser End
│       ├── README.md
│       ├── package.json
│       └── src
│           ├── App.vue             # Listening to user and pass Questions to Siwi-API
│           └── main.js
└── wsgi.py

Manually Run Components

Backend

Install and run.

1
2
3
4
5
6
7
8
# Install siwi backend
python3 -m build

# Configure Nebula Graph Endpoint
export NG_ENDPOINTS=127.0.0.1:9669

# Run Backend API server
gunicorn --bind :5000 wsgi --workers 1 --threads 1 --timeout 60

For OpenFunction/ KNative

1
2
3
4
5
6
docker build -t weygu/siwi-api .
docker run --rm --name siwi-api \
     --env=PORT=5000 \
     --env=NG_ENDPOINTS=127.0.0.1:9669 \
     --net=host \
     weygu/siwi-api

Try it out Web API:

1
2
3
4
5
6
7
8
$ curl --header "Content-Type: application/json" \
       --request POST \
       --data '{"question": "What is the relationship between Yao Ming and Lakers?"}' \
       http://192.168.8.128:5000/query | jq

{
  "answer": "There are at least 23 relations between Yao Ming and Lakers, one relation path is: Yao Ming follows Shaquille O'Neal serves Lakers."
}

Call Bot Python API:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
from nebula2.gclient.net import ConnectionPool
from nebula2.Config import Config

# define a config
config = Config()
config.max_connection_pool_size = 10
# init connection pool
connection_pool = ConnectionPool()
# if the given servers are ok, return true, else return false
ok = connection_pool.init([('127.0.0.1', 9669)], config)

# import siwi bot
from siwi.bot import bot

# instantiate a bot
b = bot.SiwiBot(connection_pool)

# make the question query
b.query("Which team had Jonathon Simmons served?")

Then a response will be like this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
In [4]: b.query("Which team had Jonathon Simmons serv
   ...: ed?")

[DEBUG] ServeAction intent: {'entities': {'Jonathon Simmons': 'player'}, 'intents': ('serve',)}

[DEBUG] query for RelationshipAction:
	USE basketballplayer;
  MATCH p=(v)-[e:serve*1]->(v1) WHERE id(v) == "player112"
  RETURN p LIMIT 100;

[2021-07-02 02:59:36,392]:Get connection to ('127.0.0.1', 9669)

Out[4]: 'Jonathon Simmons had served 3 teams. Spurs from 2015 to 2015; 76ers from 2019 to 2019; Magic from 2017 to 2017; '

Frontend

Referring to siwi_frontend

Further work

  • Use NBA-API to fallback undefined pattern questions
  • Wrap and manage sessions instead of get and release session per request, this is somehow costly actually.
  • Use NLP methods to implement proper Symentic Parsing, Intent Matching, Slot Filling
  • Build Graph to help with Intent Matching, especially for a general purpose bot
  • Use larger Dataset i.e. from wyattowalsh/basketball

Thanks to Upstream Projects ❤️

Backend

Frontend

Image credit goes to https://unsplash.com/photos/0E_vhMVqL9g
